Product Categories2D AOI
2D AOI

High speed, high precision 。 widely used in the production lines of smart devices such as smart phones, laptops, and tablets。

Machine to machine communication: IPC-SMEMA-9851 or IPC-HERMES-9852 or IPC-2591 CFX。

  • High reliability
    From design to component selection, all are in order to meet high reliability testing requirements
  • Light source system
    Multi-channel light source, RGB time-sharing acquisition; multi-threaded parallel processing
  • high level AOI inspection program
    Modular detection, rapid data generation, to achieve more powerful detection capabilities.
  • real time
    Real-time SPC data analysis and processing
  • Centralized management
    Centralized management, one person controls multiple lines; realizes online non-stop remote adjustment and program update
  • High efficiency control system
    Self-developed control system, more efficient and more reliable

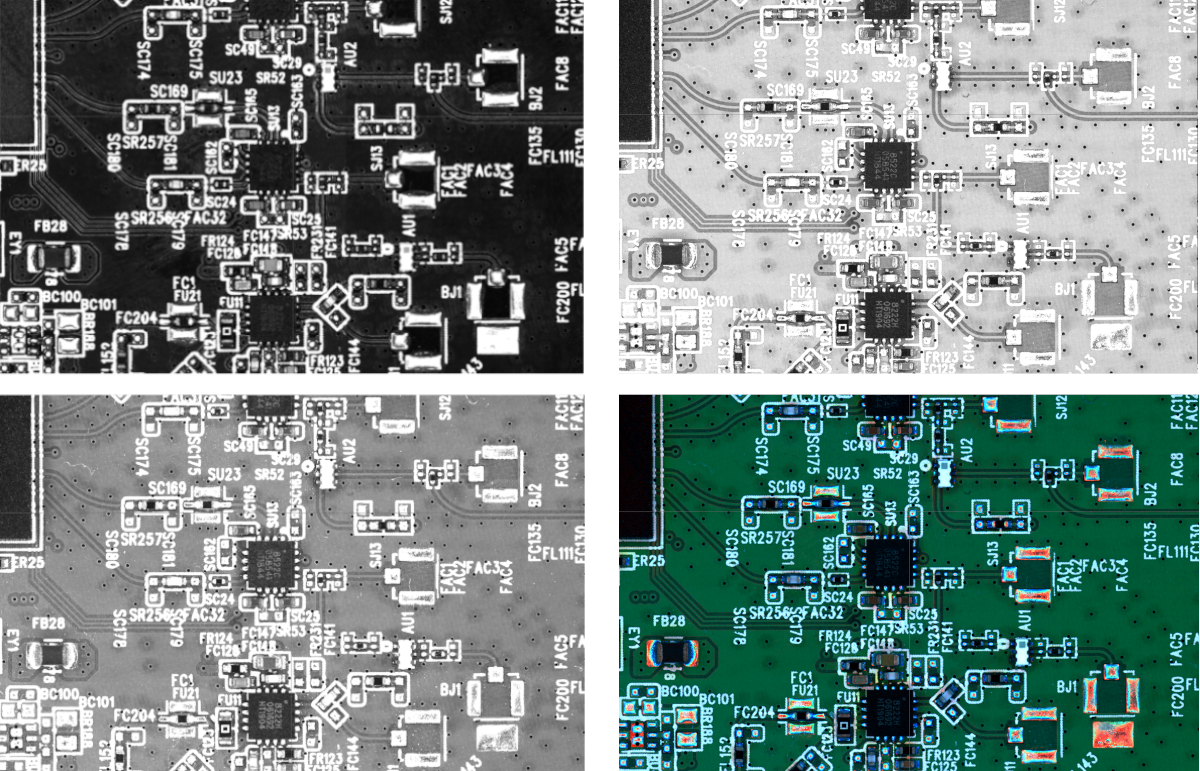

The newly designed six-channel LED light source greatly improves the detection effect

High-speed multi-frame camera, select at least four photos for processing, more powerful detailed analysis

product list
  • Twins
    Equipment type: online double-sided 2D AOI
    Applicable substrate: 50mm x 70mm-510mm x 460mm
    Substrate thickness: 0.6mm-6.0mm
    Resolution: 15 μm standard (6~17.5 μm optional)
    Dimensions: W1080 X D1275 X H1800mm
    Weight: 750 KG
    Twins-B Online SLR 2D AOI
  • LI-6000D
    Equipment type: double track L size online automatic 2D AOI
    Characteristic: LI-6000 dual-track model
    Applicable substrate: single track: 50mmX70mm ~ 535mmX590mm
    Double track: 50mmX70mm ~ 535mmX330mm
    Substrate thickness: 0.6mm-6.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W1083 x D1445 x H1800(mm)
    Weight: 945KG
    LI-6000 equipment type: single track L size online automatic 2D AOI
  • LI-5000
    Device type: L size online fully automatic 2D AOI
    Applicable substrate: 50mmX70mm~510mmX460mm
    Substrate thickness: 0.6mm~6.0mm
    Resolution: 5μm~15μm
  • LI-3000DP
    Equipment type: double track L size online automatic 2D AOI
    Applicable substrate: Single track: 50mmX70mm ~ 535mmX590mm
    Double track: 50mmX70mm ~ 535mmX330mm
    Substrate thickness: 0.6mm-6.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W1080 X D1390 X H1840 (mm)
    Weight: 945KG
  • MI-3000
    Equipment type: M size online automatic 2D AOI
    Applicable substrate: 50mm x 70mm-330mm x 250mm
    Substrate thickness: 0.6mm-6.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W860 x D900 x H1760 (mm)
    Weight: 512KG
  • XI-2000
    Equipment type: XL size online automatic 2D AOI
    Applicable substrate: 50mm x 70mm-650mm x 560mm
    Substrate thickness: 0.6mm-6.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W1200 X D1200 X H1840 (mm)
    Weight: 900KG
  • LD-5000
    Device type: Device type: L size offline 2D AOI
    Applicable substrate: 50mm x 50mm-510mm x 460mm
    Substrate thickness: 0.6mm-3.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W900 x D1280 x H1355 (mm)
    Weight: 380KG
  • MD-2000
    Device type: M size offline 2D AOI
    Applicable substrate: 50mm x 50mm-330mm x 250mm
    Substrate thickness: 0.4mm-3.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W625 X D847 X H1300 (mm)
    Weight: 168KG
  • XD-2000
    Device type: XL size offline 2D AOI
    Applicable substrate: 50mm x 100mm-650mm x 550mm
    Substrate thickness: 0.6mm-3.0mm
    Resolution: 12 um (5um-17.5um option)
    Dimensions: W1115 X D1450 X H1216 (mm)
    Weight: 499KG
